What Is Nanotechnology in Solar Energy (and How Does It Work)?

Nanotechnology in solar energy refers to the engineering of materials and devices at the nanoscale, typically between 1 and 100 nanometers, to enhance the efficiency, durability, and cost-effectiveness of photovoltaic systems. By manipulating matter at the atomic and molecular level, researchers can fundamentally alter how solar cells absorb light, transport electrical charge, and convert photons into usable electricity.

The stakes are substantial. Conventional silicon solar cells have plateaued near their theoretical efficiency limit of roughly 29%, known as the Shockley-Queisser limit. Nanotechnology offers pathways beyond this ceiling. Quantum dots, nanowires, and plasmonic nanoparticles enable solar cells to capture a broader spectrum of sunlight, reduce energy loss from heat, and achieve conversion efficiencies that were unattainable a decade ago. Laboratory demonstrations have already pushed certain nanomaterial-enhanced cells past 30% efficiency, with tandem architectures combining perovskite and silicon layers reaching 33% in 2025.

The practical implications extend far beyond laboratory benchmarks. Flexible solar films incorporating carbon nanotubes can be printed onto curved surfaces, opening applications in wearable electronics and building-integrated photovoltaics. Transparent nanostructured coatings transform windows into power generators without obstructing views. Anti-reflective nanocoatings reduce light loss by up to 4%, a meaningful gain that translates directly to kilowatt-hours over a panel’s 25-year lifespan.

This article examines how nanotechnology reshapes solar energy from the ground up. You’ll understand the specific mechanisms by which nanoscale structures improve light absorption and charge separation, explore the distinct categories of nanomaterials currently deployed in commercial and experimental systems, and review real-world performance data from installations worldwide. The focus remains on proven technologies and research-backed advances, not speculative claims.

What Nanotechnology in Solar Energy Means

Nanotechnology in solar energy refers to the engineering and application of materials at the atomic and molecular scale, specifically between 1 and 100 nanometers, to fundamentally improve how solar cells capture sunlight and convert it into electricity. At this scale, materials exhibit unique optical, electrical, and chemical properties that differ dramatically from their bulk counterparts. A nanometer is one-billionth of a meter; to put this in perspective, a human hair is roughly 80,000 nanometers wide, while the nanostructures used in advanced solar cells might be just 10 to 50 nanometers across.

Unlike conventional solar panels that rely on relatively thick layers of silicon or other semiconductors to absorb light, nanotechnology-enhanced systems use precisely engineered nanostructures to manipulate light and electrons with far greater control. These nanostructures can include quantum dots (semiconductor nanocrystals), nanowires, nanotubes, ultrathin films, and plasmonic nanoparticles. Each structure is designed to interact with specific wavelengths of light or guide electrons along optimized pathways, addressing fundamental limitations in traditional photovoltaic design.

The distinction from conventional technology comes down to surface area, quantum effects, and light management. When materials are reduced to nanoscale dimensions, their surface-area-to-volume ratio increases exponentially, creating more active sites for light absorption and charge generation. Additionally, quantum confinement effects emerge at this scale, allowing researchers to tune a material’s electronic properties by adjusting particle size rather than changing its chemical composition. This means engineers can design solar cells that absorb a broader spectrum of sunlight, including wavelengths that conventional cells waste.

In practical terms, nanotechnology approaches the solar energy challenge from the bottom up. Rather than starting with large semiconductor wafers and processing them into cells, researchers build structures atom by atom or molecule by molecule, creating architectures specifically optimized for photon capture and charge extraction. This precision allows for thinner, lighter cells that can match or exceed the efficiency of much thicker conventional panels while potentially using less material and energy in manufacturing.

How Nanotechnology in Solar Cells Works

Enhanced Light Absorption and Trapping

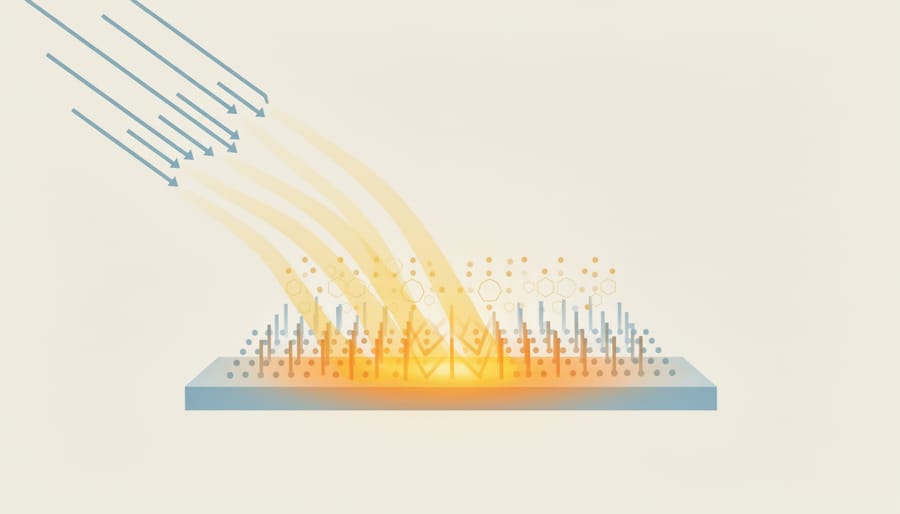

Nanostructured surfaces manipulate light at scales comparable to the wavelengths of visible and near-infrared radiation, creating opportunities to capture photons that conventional flat surfaces would reflect or allow to pass through. When sunlight strikes a nanostructured solar cell surface, the engineered topography scatters incoming light at multiple angles rather than allowing direct reflection. This scattering increases the optical path length within the absorbing material, giving photons more opportunities to generate electron-hole pairs before escaping the cell.

Plasmonic nanoparticles, typically noble metal structures like gold or silver, enhance absorption through a distinct mechanism. When light waves interact with these metallic nanoparticles, they excite collective oscillations of free electrons called surface plasmons. These oscillations create intense electromagnetic fields in the immediate vicinity of the particle, sometimes amplifying the local light intensity by factors of 10 to 100. This near-field enhancement dramatically increases the probability of photon absorption in adjacent semiconductor materials, even for wavelengths that the semiconductor would normally absorb weakly.

Light trapping architectures combine both effects. Nanostructured arrays create optical resonances within the cell, effectively folding the light path multiple times through the active layer. Research from Stanford University demonstrated that silicon nanowire arrays achieved absorption rates exceeding 96% across the solar spectrum despite using a fraction of the material thickness required by conventional cells. These mechanisms allow thinner, more flexible solar cells to achieve absorption performance that would otherwise require much thicker, rigid designs.

Improved Charge Separation and Transport

Efficient charge separation and transport represent critical determinants of solar cell performance, and nanomaterials fundamentally restructure these processes at the atomic level. When photons generate electron-hole pairs in a solar cell, those charges must reach their respective electrodes before recombining and losing their energy as heat. Conventional bulk materials create long, tortuous pathways where many carriers recombine before collection. Nanostructured materials solve this by creating direct, shortened routes that carriers can traverse in nanoseconds rather than microseconds.

Nanowire and nanorod architectures exemplify this advantage. A vertically aligned nanowire array establishes perpendicular pathways for charge collection while maintaining a large surface area for light absorption in the horizontal plane. This orthogonalization of light absorption and charge transport allows carriers to travel tens of nanometers to the electrode rather than micrometers, reducing the distance by two orders of magnitude. The shorter transit time drastically cuts recombination losses, particularly in materials with inherently low carrier mobility or short diffusion lengths.

Engineered interfaces between dissimilar nanomaterials create built-in electric fields that accelerate charge separation. Type-II heterojunctions, where energy band alignments naturally separate electrons and holes into different materials, prevent backward recombination. Researchers at Stanford University demonstrated that titanium dioxide nanorods coupled with quantum dots achieve electron extraction efficiencies exceeding 90 percent through precisely controlled interface engineering.

Nanostructured electrodes further enhance transport by increasing contact area and reducing interface resistance. Mesoporous titanium dioxide films, with pore sizes around 20 nanometers, provide vast interfacial area for dye molecules or perovskite absorbers while creating a continuous conductive scaffold. This architecture allows electrons to percolate through the network via multiple parallel pathways, maintaining high collection efficiency even when individual pathways contain defects. The result is sustained current generation under real-world conditions where material imperfections are inevitable.

Types of Nanotechnology Applications in Solar Energy

Nanotechnology in solar energy manifests across several distinct approaches, each leveraging nanoscale engineering to overcome specific limitations of conventional photovoltaics.

Quantum dot solar cells employ semiconductor nanocrystals typically 2-10 nanometers in diameter. Their defining characteristic is size-tunable bandgap: by adjusting particle dimensions, researchers can optimize which wavelengths of light the material absorbs. This enables multi-junction architectures where different quantum dot layers capture different portions of the solar spectrum. Lead sulfide and cadmium selenide quantum dots have demonstrated the ability to generate multiple electron-hole pairs from a single high-energy photon, a phenomenon called multiple exciton generation. Laboratory efficiencies have reached 18%, though commercial deployment remains limited by stability concerns and the challenge of maintaining uniform dot spacing during manufacturing.

Plasmonic enhancement uses metal nanoparticles, typically gold or silver spheres 10-100 nanometers across, to concentrate light at the solar cell surface. When illuminated, these particles exhibit localized surface plasmon resonance, creating intense electromagnetic fields that boost absorption in the surrounding semiconductor. The performance profile centers on improved light trapping rather than fundamentally altering charge transport. Plasmonic nanoparticles work particularly well in thin-film cells, where they can increase absorption without requiring thicker (and more expensive) active layers. Studies show absorption enhancements of 20-30% in specific wavelength ranges, though careful design is needed to avoid parasitic absorption in the metal particles themselves.

Nanowire arrays consist of vertical or aligned semiconductor structures with diameters of 50-200 nanometers and lengths of several micrometers. Silicon nanowires, zinc oxide nanowires, and gallium arsenide nanowires all follow a similar design principle: the geometry decouples light absorption (which occurs along the length) from charge collection (which occurs across the much shorter diameter). This arrangement allows efficient cells using less material and lower-purity semiconductors than conventional wafer-based designs. The arrays also exhibit excellent anti-reflection properties due to gradual refractive index matching. Challenges include ensuring electrical connection at the nanowire base and preventing surface recombination along the high-surface-area structures.

Perovskite nanocrystals represent one of the fastest-advancing areas, with crystal sizes controlled at 10-50 nanometers to optimize bandgap and reduce defect density. Unlike bulk perovskite films, nanocrystalline versions show improved moisture resistance and can be deposited from solution at low temperatures. Their performance profile includes very high absorption coefficients and long carrier diffusion lengths. When combined with conventional silicon cells in tandem configurations, perovskite nanocrystals have helped push efficiencies beyond 33%.

Carbon-based nanomaterials bring unique properties to solar applications. Graphene layers, just one atom thick, serve as transparent electrodes with superior conductivity compared to traditional indium tin oxide. Carbon nanotubes, hollow cylinders 1-2 nanometers in diameter, function as both light absorbers and charge transport pathways. Their chemical stability and mechanical flexibility make them attractive for portable applications, though current efficiencies remain below 10%.

Nanostructured thin films encompass a broader category where the active layer’s internal architecture is engineered at the nanoscale through controlled crystallization, phase separation, or templating. These films typically measure 100-500 nanometers thick with internal features sized to optimize exciton diffusion. The approach reduces material costs while maintaining reasonable efficiencies between 12-18% for technologies like copper indium gallium selenide cells.

Real-World Applications and Uses

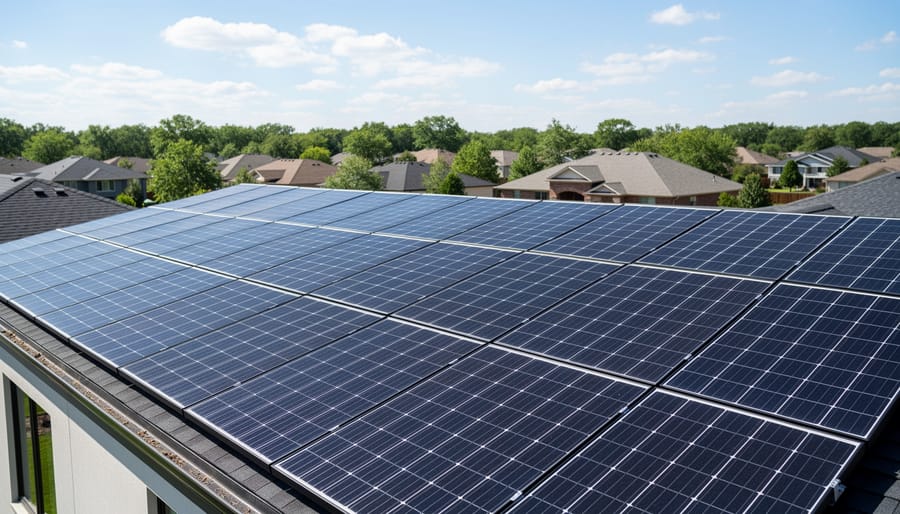

Nanotechnology-enhanced solar cells are moving from laboratory demonstrations into real-world deployment across diverse sectors, driven by partnerships between research institutions and commercial manufacturers. In residential and commercial settings, nanostructured silicon and quantum dot-enhanced panels are being integrated into home solar power installations, with field trials in California and Germany showing 15-22% efficiency gains over conventional panels. These installations particularly benefit from improved low-light performance, capturing usable energy during cloudy conditions and early morning hours when traditional cells underperform.

Building-integrated photovoltaics represent one of the most commercially promising applications, where transparent quantum dot coatings and perovskite-based films transform windows and facade panels into electricity generators without compromising aesthetics. Projects at MIT and the National Renewable Energy Laboratory have demonstrated semi-transparent solar windows achieving 8-12% efficiency while maintaining 60% visible light transmission, opening pathways for urban energy generation in high-rise structures.

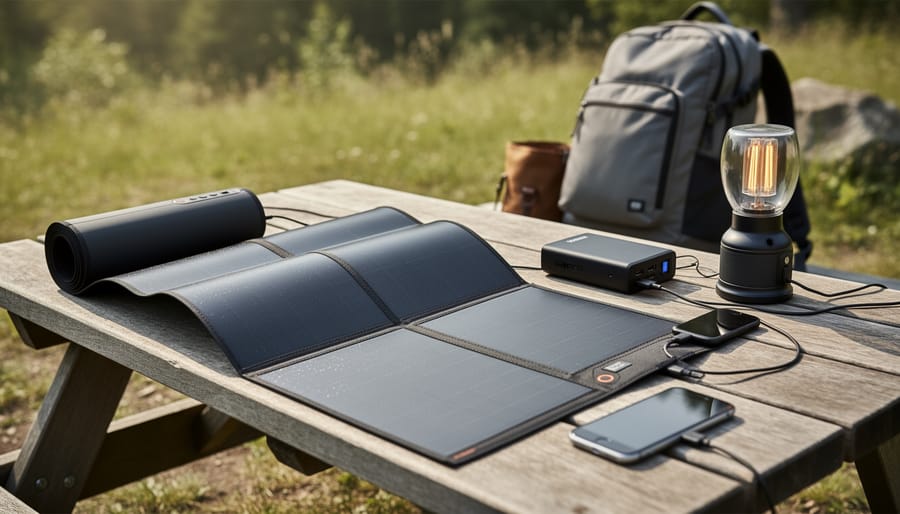

• Flexible solar chargers using carbon nanotube composites that roll into compact units for outdoor recreation and military field operations
• Spacecraft solar arrays incorporating III-V nanowire cells achieving 35% efficiency under extraterrestrial solar radiation
• Wearable electronics powered by graphene-enhanced thin-film cells integrated into textiles and portable devices
• Solar-powered water purification systems in remote areas using plasmonic nanoparticle-enhanced panels
• Agricultural sensors and irrigation systems running on quantum dot photovoltaics optimized for spectral ranges not utilized by crops

Beyond electricity generation, nanotechnology is enabling photoelectrochemical applications where solar fuels production uses nanostructured catalysts to split water into hydrogen or reduce carbon dioxide into usable hydrocarbons. Research teams at Stanford and the Joint Center for Artificial Photosynthesis have demonstrated prototype systems using titanium dioxide nanowires and perovskite absorbers that convert sunlight directly into chemical energy storage, providing pathways to integrate solar technology with hydrogen fuel cells and carbon-neutral fuel production. Space agencies including NASA and ESA are deploying nanowire-based multijunction cells on satellites and Mars rovers, where the lightweight, radiation-resistant properties of nanomaterials provide distinct advantages over silicon panels in harsh extraterrestrial environments.

Performance Advantages and Efficiency Gains

Nanotechnology delivers measurable performance gains that address longstanding limitations in photovoltaic systems. Laboratory testing at institutions including MIT and Stanford has demonstrated quantum dot solar cells achieving conversion efficiencies of 18-20%, compared to 15-17% for comparable conventional silicon cells. Plasmonic nanoparticles embedded in thin-film architectures have increased absorption by 25-35% across the visible spectrum, allowing thinner active layers without sacrificing output.

Cost reduction follows from material efficiency. Nanostructured cells require 50-70% less semiconductor material than traditional designs because enhanced light trapping compensates for reduced thickness. Research from the National Renewable Energy Laboratory shows that nanowire arrays can maintain efficiency with active layers under 1 micron, compared to 180-200 microns in standard crystalline silicon cells. Lower material consumption translates to reduced manufacturing expense and lighter module weight.

Durability improvements emerge from protective nanocoatings and self-cleaning surfaces. Titanium dioxide nanoparticle coatings applied at Lawrence Berkeley National Laboratory reduced soiling losses by 40% over 18-month field trials, maintaining performance in dusty environments where conventional panels degrade rapidly. Carbon nanotube-reinforced encapsulants have shown 60% greater resistance to moisture ingress and thermal cycling than standard polymer materials.

Flexibility represents a transformative advantage. Quantum dot and perovskite nanocrystal cells fabricated on polymer substrates achieve power-to-weight ratios exceeding 10 watts per gram, ten times better than rigid silicon modules. This enables applications from building-integrated facades to portable chargers. The comparison to wind energy efficiency gains through material science innovations highlights parallel advances across renewable technologies.

Low-light performance sees notable enhancement. Quantum dots tuned to capture diffuse and infrared wavelengths maintain 65-75% of peak efficiency under overcast conditions, compared to 40-50% for conventional cells. Testing at the Fraunhofer Institute documented 30% higher daily energy yield from nanostructured panels in northern European climates where direct sunlight is limited.

Current Challenges and Research Frontiers

Despite remarkable advances, nanotechnology in solar energy faces substantial hurdles before achieving widespread commercial deployment. Manufacturing scalability remains the most pressing challenge. While laboratory demonstrations routinely achieve impressive efficiency gains, translating nanoscale precision to high-volume, cost-effective production lines proves difficult. Many nanomaterial synthesis methods require expensive vacuum deposition equipment, ultra-pure materials, and time-intensive processing steps incompatible with the rapid throughput needed to compete with conventional silicon panels.

Long-term stability under real-world operating conditions presents another critical obstacle. Quantum dots can degrade when exposed to oxygen and moisture, losing their optical properties over months rather than the 25-year lifespan expected of standard photovoltaics. Perovskite nanocrystals show particular vulnerability to humidity, heat cycling, and UV radiation. Researchers at the National Renewable Energy Laboratory are developing protective encapsulation strategies and self-healing materials to address these degradation pathways.

Environmental and health concerns surrounding certain nanomaterials cannot be ignored. Cadmium-based quantum dots, despite their excellent performance, raise toxicity questions for manufacturing workers and end-of-life disposal. Lead-containing perovskites face similar scrutiny. The solar industry must ensure that efficiency improvements do not create new environmental burdens, particularly as renewable energy technologies like how hydroelectricity works demonstrate clean operation throughout their lifecycle.

Cost-effectiveness remains elusive for most nanotechnology approaches. While material quantities are small, purification and processing expenses currently exceed the price premium consumers will pay for modest efficiency gains. Standardization also lags behind innovation, with no established testing protocols or performance metrics specific to nanostructured solar cells.

Active research programs at universities and national laboratories worldwide are tackling these barriers through scalable synthesis techniques, alternative non-toxic materials, and accelerated degradation testing protocols designed to predict decades-long performance from months of data.

Frequently Asked Questions

These questions reflect the practical concerns of homeowners, businesses, and institutions considering an investment in advanced solar technology. As nanotechnology applications mature and move from laboratory demonstrations to mass production, many uncertainties around cost, performance, and safety will resolve through extended field testing and standardized manufacturing practices.

Nanotechnology represents a paradigm shift in solar energy, fundamentally altering how we capture and convert sunlight into usable electricity. By manipulating matter at the nanoscale, researchers have unlocked mechanisms that enhance light absorption through plasmonic effects, improve charge transport via nanostructured pathways, and reduce energy losses that plague conventional photovoltaics. These advances translate into tangible benefits: higher conversion efficiencies, flexible form factors, and manufacturing pathways that promise lower costs at scale.

The applications span from residential rooftops equipped with quantum dot cells to portable devices powered by lightweight nanomaterials. Building-integrated photovoltaics now leverage nanostructured thin films that combine aesthetic appeal with energy generation, while emerging solar fuel systems demonstrate nanotechnology’s potential beyond electricity production.

Yet this field remains in active development. Leading research institutions continue refining synthesis techniques, addressing stability concerns, and scaling laboratory successes to commercial viability. MIT’s work on carbon nanotube arrays, Stanford’s plasmonic enhancement studies, and NREL’s perovskite nanocrystal research exemplify the collaborative effort driving progress.

As global energy demands intensify and climate targets tighten, nanotechnology offers a credible pathway toward more efficient, accessible solar power. The technology hasn’t reached its ceiling. Instead, ongoing discoveries suggest we’re witnessing the early chapters of solar energy’s most significant evolution since the silicon cell’s invention.
